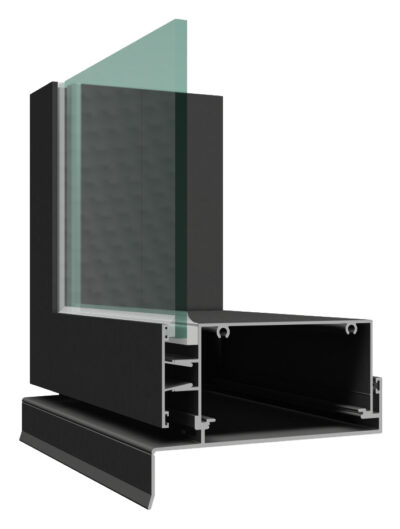

10350 Flush Glazed
103mm x 50mm Flush Glazed System
The 10350 Flush Glazed System offers a full glass façade with minimally exposed aluminium from the use of integrated blind mullions. It is a popular choice for factories and warehouses. 10350 Flush Glazed framing system is a stand alone system that can accommodate both single and double glazing.
-
WERS Rating
U Value: 2.8 - 6.2
SHGC: 0.31 - 0.75
* Interim results only -
AS 2047 Rating
AS 2047 tested
up to N4
- Key Features
- Specifications
- Profiles
- Hardware
- Downloads
Key Features
- Combinations with Hinge Doors and Awning sashes
- Split mullions to achieve the look of continuous glass
- Sub sills available
- Externally glazed System
- Structurally glazed system
Specifications
- Frame size: 50mm height x 103mm depth
- Single glazing: 4mm – 12mm
- Double glazing: 20mm – 26mm
10350 Flush Glazed Profiles
Login Required
These items are licensed products
Login to Access Products
Or click here to REGISTER
10350 Flush Glazed Hardware
Login Required
These items are licensed products
Login to Access Products
Or click here to REGISTER
Downloads
Login Required
These items are licensed products
Login to Access Products
Or click here to REGISTER
